The Liebherr LTM 1090-4.2 is a compact, four-axle all-terrain mobile crane delivering 90-ton class capacity with excellent reach, mobility, and fast setup. Its long telescopic boom, precise hydraulics, and agile steering make it ideal for city infill jobs, industrial plants, and bridge maintenance where access and footprint are limited. Variable outrigger positioning and flexible counterweight packages help maximize load charts in tight spaces while improving stability and safety. An efficient carrier layout, optimized axle loads, and road-friendly transport options cut escort needs and mobilization time, lowering total project cost. Operator-friendly controls, clear load indication, and modern assistance systems support smooth, accurate handling through long shifts. For rental fleets and contractors seeking a high-utilization taxi crane that balances power, reach, and jobsite agility, the LTM 1090-4.2 delivers dependable performance to keep schedules on track.

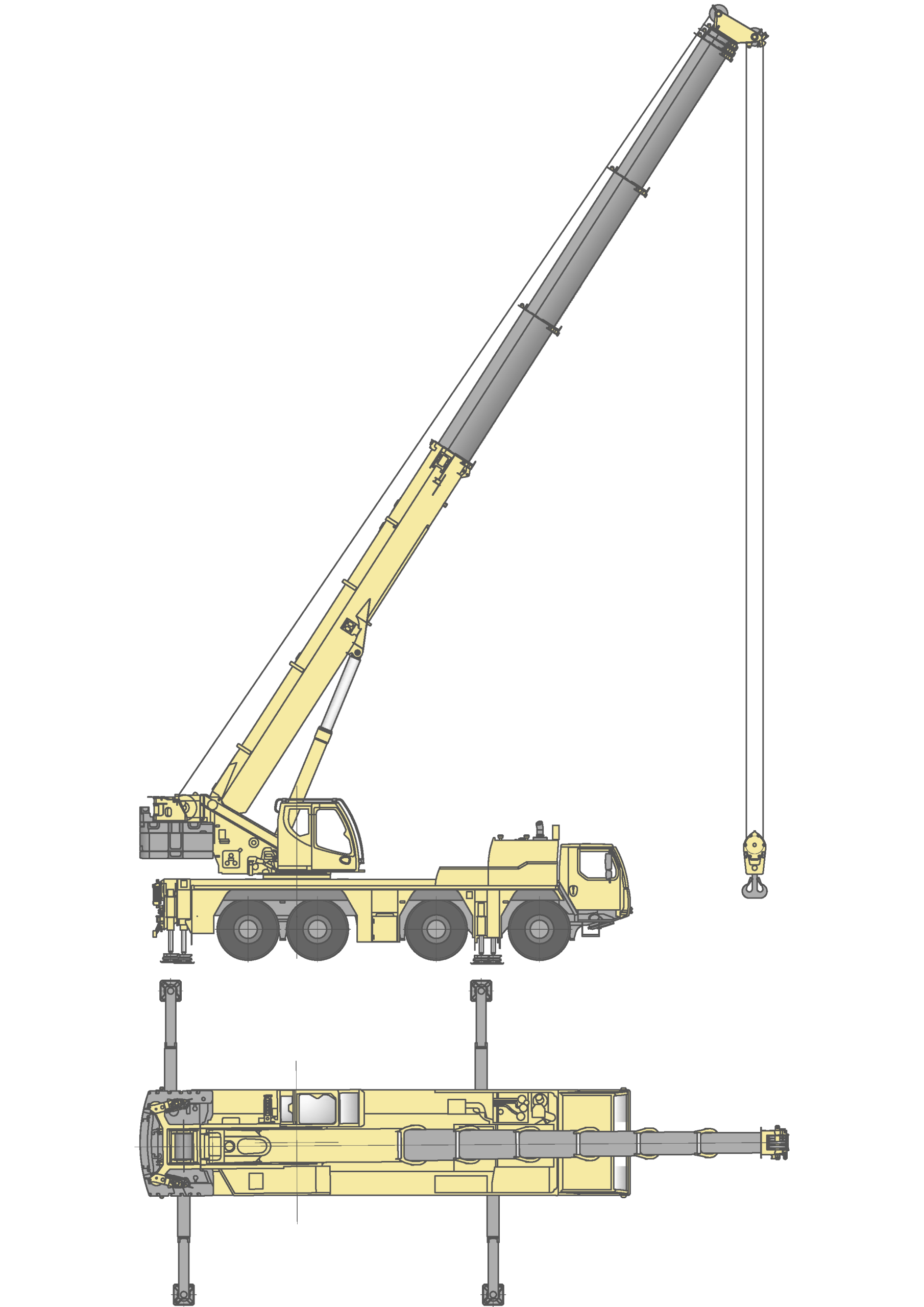

This DWG drawing was originally shared on dwg.ru by the author Aplll.
Credit goes to the original creator. If you are the copyright holder and would like this file removed or modified, please contact us.Please log in or register to download this file.
