The Liebherr LTM 11200-9.1 is a nine-axle, 1,200-ton class mobile crane engineered for ultra-heavy lifts with exceptional reach and efficiency. Its long telescopic boom (up to 100 m) combined with Y-guying and modular lattice jib options delivers outstanding load charts at large radii—ideal for wind-turbine erection, bridge segments, precast modules, and heavy industrial components. A detachable boom and optimized transport modules help minimize escort loads and speed mobilization, while intelligent hydraulic controls support smooth, precise handling in tight or uneven jobsites. Designed to reduce setup time and total project cost, the LTM 11200-9.1 offers the high capacity, mobility, and reliability rental fleets and EPC contractors need to keep critical schedules on track. From power generation turnarounds to complex infrastructure lifts, this flagship all-terrain telescopic crane provides proven performance, robust safety systems, and the flexibility required for today’s heaviest lifting challenges.

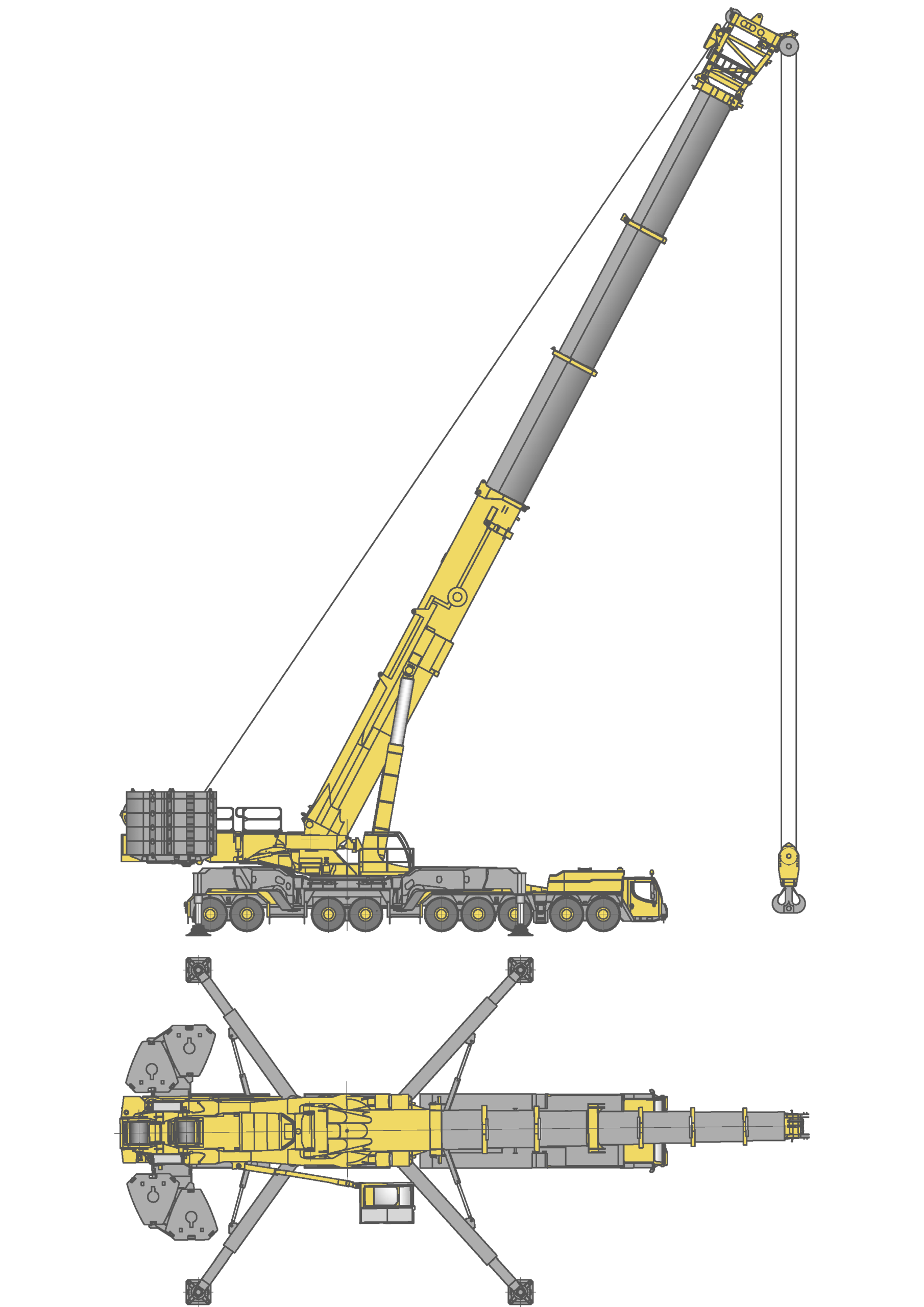

This DWG drawing was originally shared on dwg.ru by the author Aplll.
Credit goes to the original creator. If you are the copyright holder and would like this file removed or modified, please contact us.Please log in or register to download this file.
